Lecture 3: Plotting with ggplot

In this lecture, we introduce data visualization using the ggplot2 package. The goal is not to make fancy plots, but to learn how graphs help us see patterns, ask better questions, and check assumptions before running regressions.

We will use this county-level American Community Survey data focused on citizenship and economic outcomes. This allows us to visualize meaningful variation across places and connect plots directly to economic reasoning.

Why Plot Data?

Before estimating models, data analysts almost always look at graphs.

Plots help us:

  • Understand the distribution of variables

  • See relationships between variables

  • Identify outliers or unusual observations

  • Can help us spot errors

  • Decide what kinds of models might make sense

Think of plotting as descriptive analysis, not a decoration.

Load the Required Packages

We will use the ggplot2 package for plotting. First, if you have never used this package before, you need to install it with the following code:

install.packages("ggplot2")

Then, every time you open R, you need to run the code:

library(ggplot2)

The Structure of a ggplot

Every ggplot2 graph follows the same basic structure:

ggplot(data = df, aes(x = x_variable, y = y_variable)) +
  geom_something()

Key components:

  • data: the data frame

  • aes(): mappings from variables to visual elements

  • geom_*(): how the data are displayed

You can read this as:

“Using this data, map these variables to the axes, and draw them this way.”

Load the Data

Load the data as demonstrated in lecture 2.

This dataset has the variables:

  • geoid - county identifier code

  • name - county name

  • tot_pop - population

  • med_hh_inc - median household income

  • total_hh - total number of households

  • total_hh_w_assistance - total number of households receiving public assistance

  • total_hh_no_assistance - total number of households not receiving public assistance

  • citizen_born - total population born a citizen

  • citizen_naturalized - total population naturalized as a citizen

  • non_citizen - total non-citizen population

Histogram: Distribution of Non-Citizens

Let’s start by getting the distribution of non-citizen shares across counties. First, we need to create a variable that shows the percent non-citizen rather than the total number.

county$non_citizen_share <- 100*county$non_citizen/county$tot_pop

Then, we can create our graph.

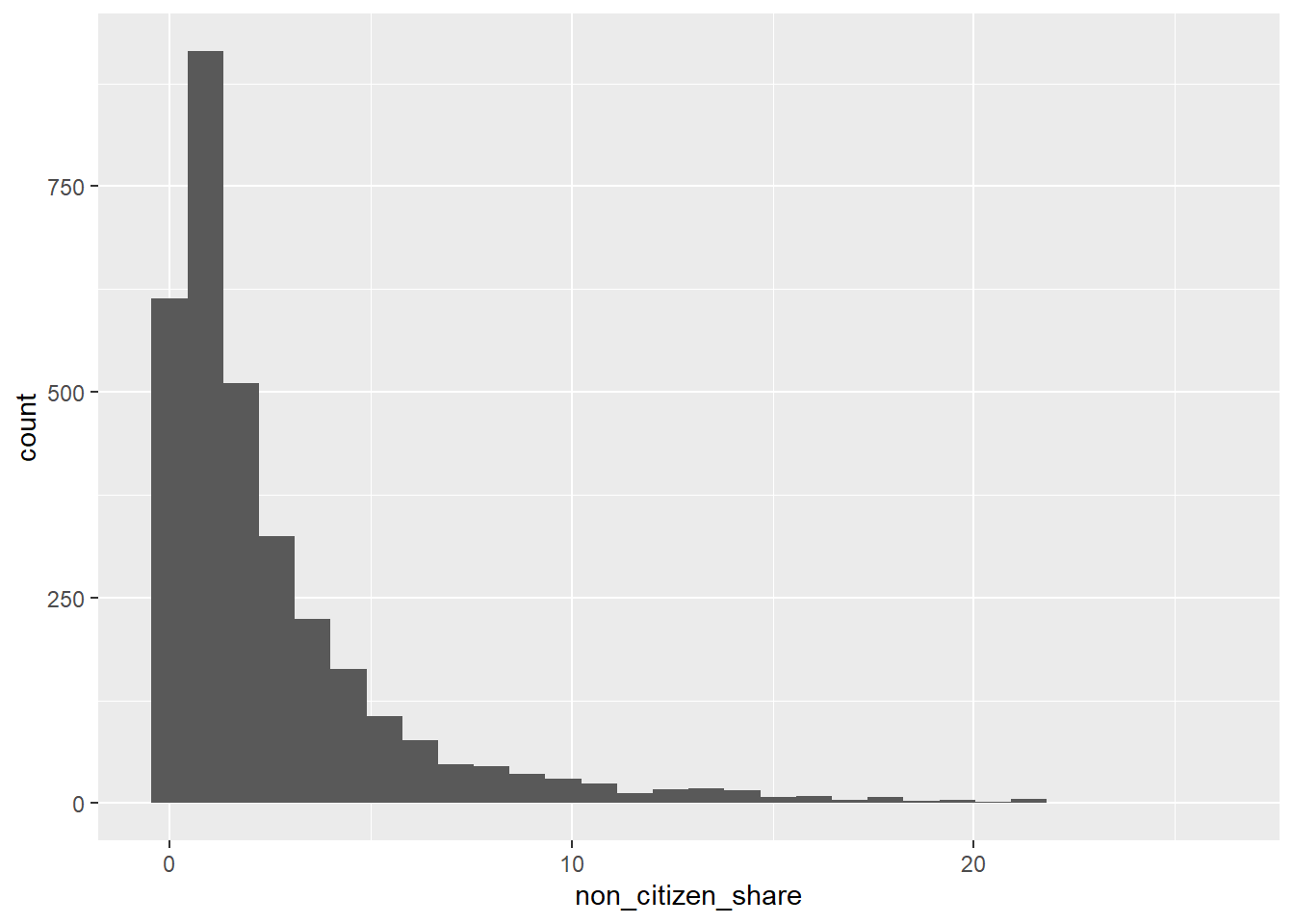

ggplot(county, aes(x = non_citizen_share)) +
  geom_histogram()

This plot answers questions like:

  • Are most counties low or high in non-citizen population?

  • Is the distribution skewed?

At this stage, we are learning what is typical versus unusual.

Scatterplot: Non-Citizens and Income

Next, we examine the relationship between non-citizen share and median income.

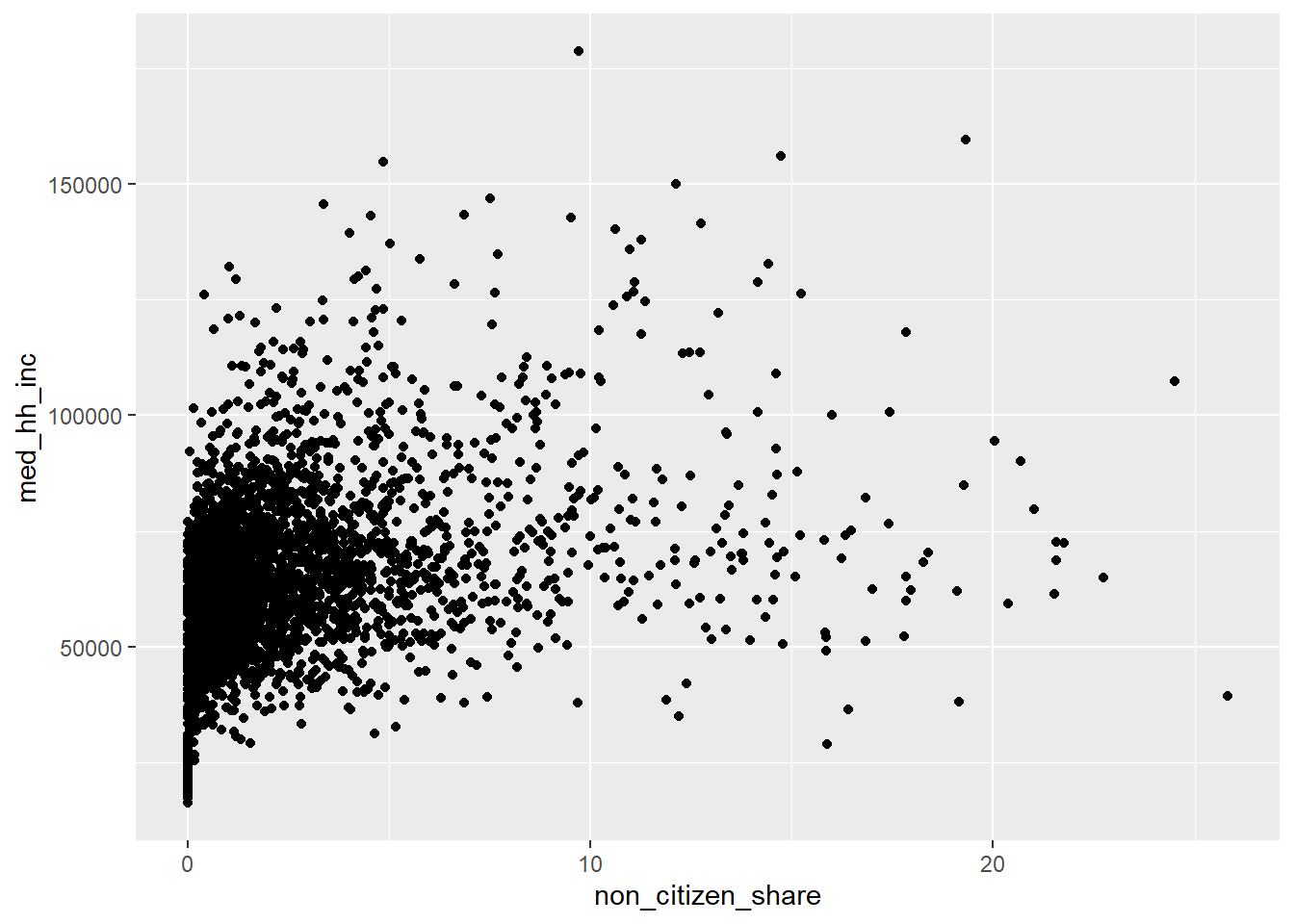

ggplot(county, aes(x = non_citizen_share, y = med_hh_inc)) +
  geom_point()

This plot helps us ask:

  • Do counties with more non-citizens tend to be richer or poorer?

  • Is the relationship roughly linear?

  • Are there extreme counties driving the pattern?

This kind of plot directly motivates regression analysis later in the course.

Adding Labels and Titles

Clear graphs require clear labels.

ggplot(county, aes(x = non_citizen_share, y = med_hh_inc)) +
  geom_point() +
  labs(
    title = "Non-Citizen Share and Median Income by County",
    x = "Percent Non-Citizen",
    y = "Median Household Income"
  )

Good labeling is part of good empirical practice.

Comparing Groups: Urban vs. Rural Counties

Let’s create a variable urban that equals 1 for counties with more than 100,000 people and 0 for counties with less than 100,000.

county$urban <- ifelse(county$tot_pop > 50000, 1, 0)

Now, let’s compare distributions using color.

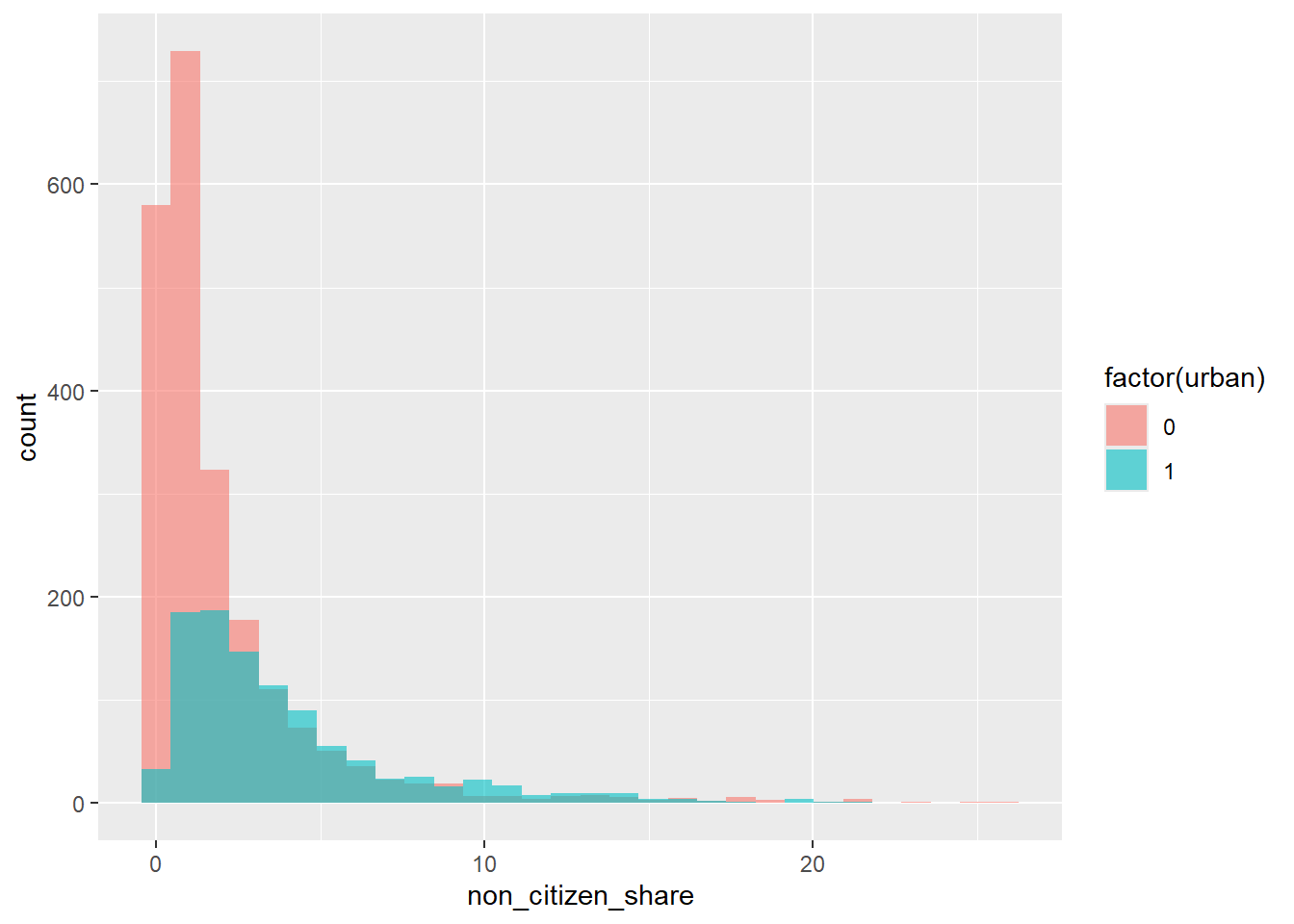

ggplot(county, aes(x = non_citizen_share, fill = factor(urban))) +
  geom_histogram(position = "identity", alpha = 0.6)

This allows us to see:

  • Whether non-citizens are concentrated in urban areas

  • How distributions differ across groups

Scatterplot with Color by Group

We can also color points by group in a scatterplot.

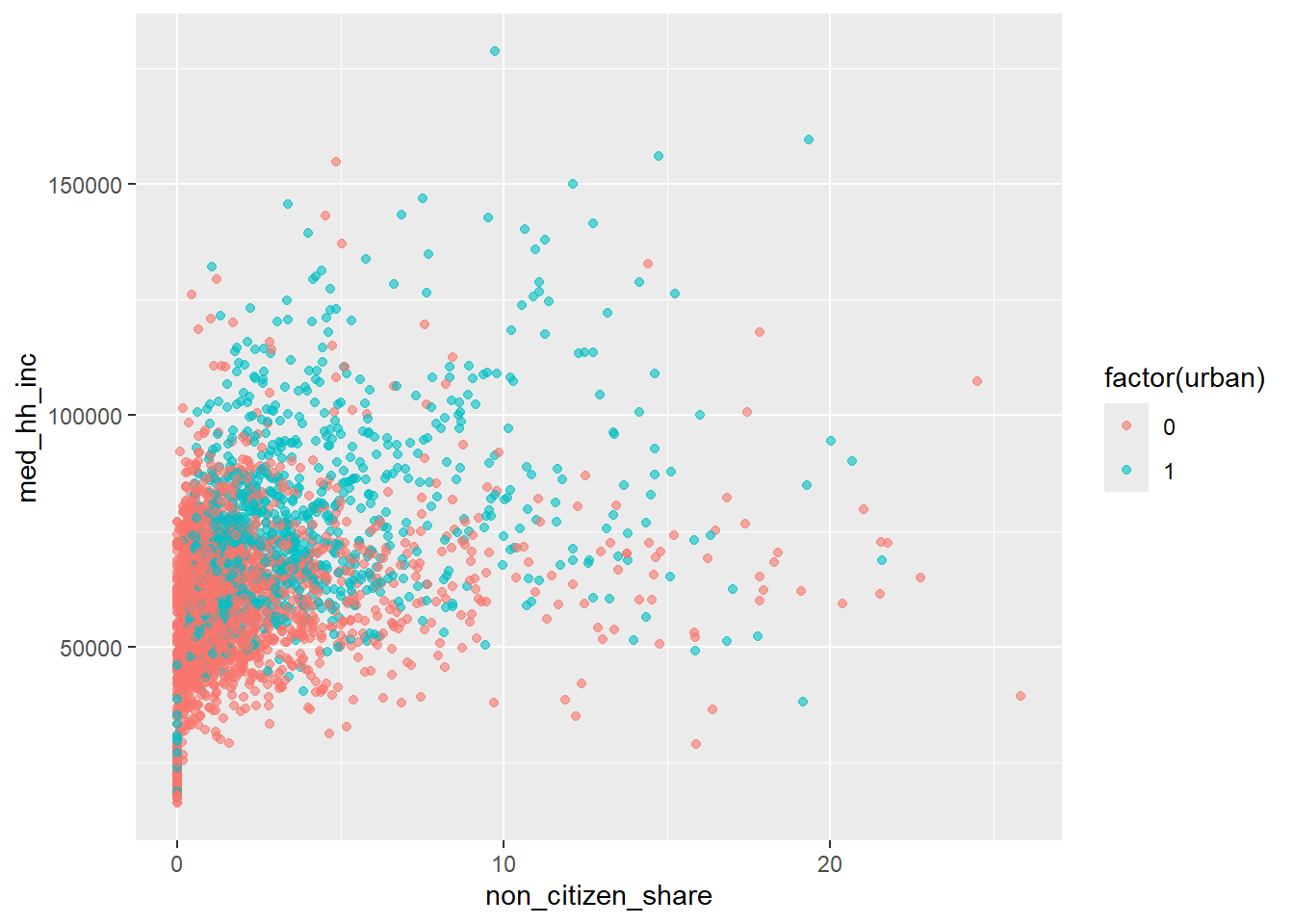

ggplot(county, aes(x = non_citizen_share, y = med_hh_inc, color = factor(urban))) +
  geom_point(alpha = 0.6) # Alpha sets the transparency of points

This helps separate within-group and between-group patterns.

Adding a Trend Line (Preview of Regression)

We can add a fitted line to summarize the relationship visually.

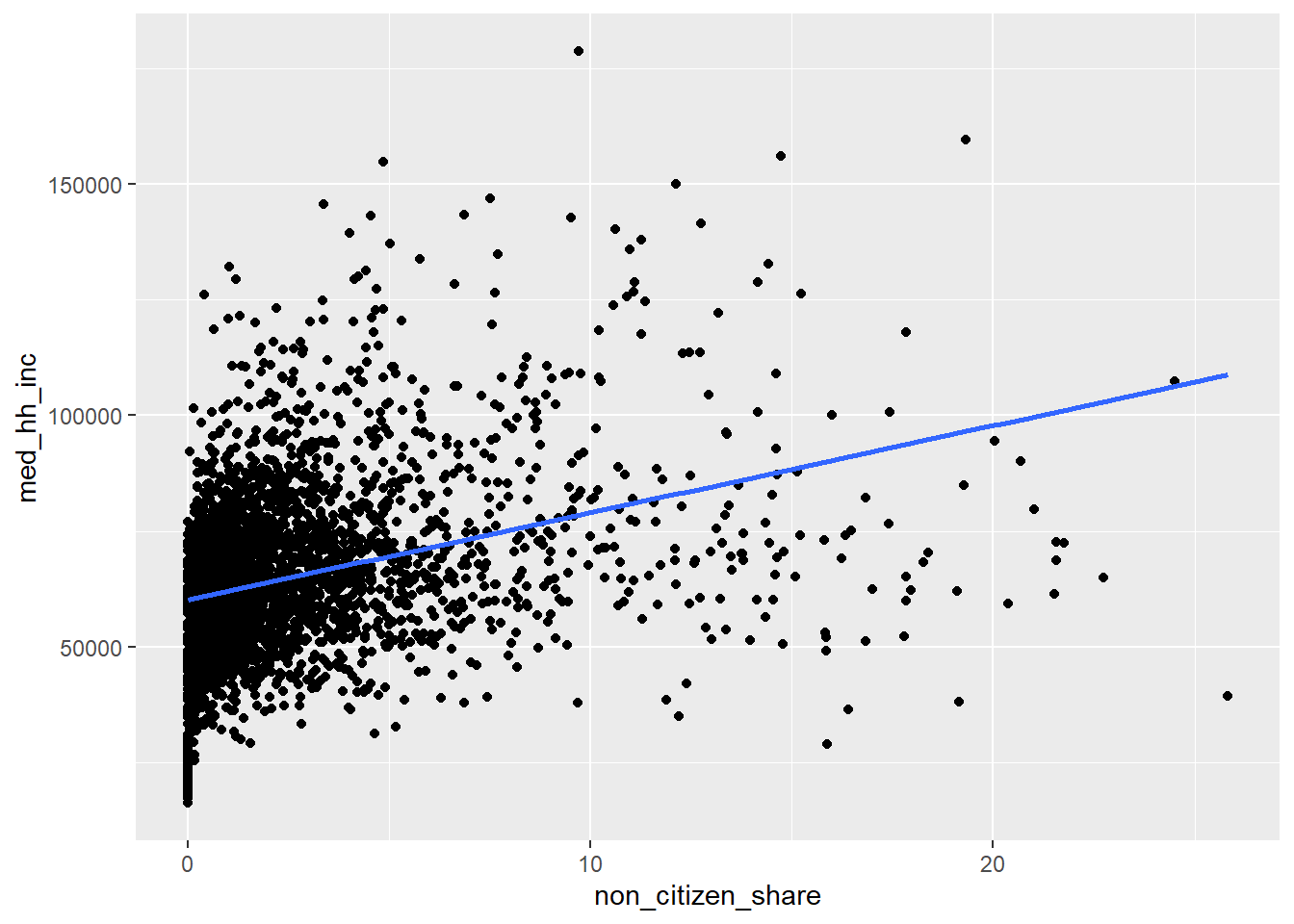

ggplot(county, aes(x = non_citizen_share, y = med_hh_inc)) +
  geom_point() +
  geom_smooth(method = "lm", se = FALSE)

This line is:

  • A simple linear summary of the relationship

  • A visual preview of what a regression does numerically

We will return to this idea when we formally introduce regression.

Interpreting Graphs Carefully

Important reminder:

  • Graphs show correlation, not causation

  • County-level patterns reflect many underlying factors

Plots are a starting point for analysis, not a final conclusion.

Common Plotting Mistakes

  • Plotting before understanding the variables

  • Forgetting to label axes

  • Interpreting slopes causally

  • Ignoring extreme outliers

Visualization should clarify, not confuse.

Exercise

Using the county-level dataset:

  1. Create a variable for % of households with public assistance

  2. Create a histogram of % receiving public assistance

  3. Create a scatterplot of non-citizen share vs % with public assistance

  4. Add appropriate axis labels and a title

  5. Interpret each plot

Focus on what you learn from the graph, not how complex the code is.
